G系列全封闭齿轮减速机
一、产品特点：
1、全封闭全寿命机电一体化设计 2、硬齿面斜齿传动，低噪声、高 效率
3、整体结构紧凑、重量轻、适应性强 4、可附加电磁制动器

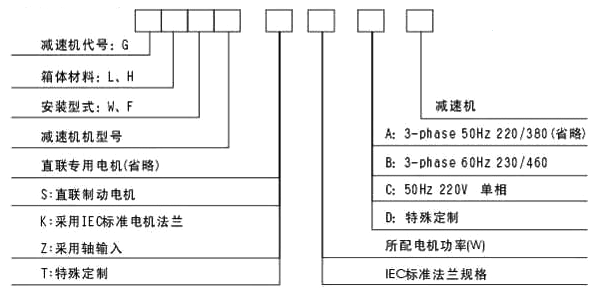

二、型号标记：
注：箱体材料：L—铝合金、H—铸铁 安装型式：W—底脚式、F—法兰式
标志示例：
A GHWZ40-50
双轴铸铁箱体卧式，40机型号，减速比50
B GLF28-550-50
立式名合金箱体、28机型号、直联专用电机55W，减速比50。
C GLW28K-80B85-30
卧式铝合金箱体，28机型号，输入端IEC标准电机法兰80B5，减速比30

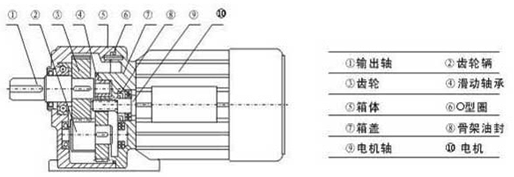

三、结构图例：
G系列封闭式齿轮减速机技术参数
功率KW | 机型号 | 减速机 | 输出转矩N.m | 输出转速rpm |
0.12 0.18 | 18 | 3 | 3.4 | 460.0 |
5 | 5.6 | 276.0 | ||
10 | 11.2 | 138.0 | ||
15 | 16.9 | 92.0 | ||
20 | 22.5 | 69.0 | ||
25 | 28.1 | 55.2 | ||
30 | 33.8 | 46.0 | ||
40 | 45.1 | 34.5 | ||
50 | 56.3 | 27.6 | ||
22 | 60 | 67.6 | 23.0 | |
80 | 90 | 17.3 | ||
100 | 112 | 13.8 | ||
120 | 135 | 11.5 | ||
160 | 180 | 8.7 | ||
200 | 225 | 6.9 | ||
0.25 0.37 | 22 | 3 | 7 | 460.0 |
5 | 11.6 | 276.0 | ||
10 | 23.1 | 138.0 | ||
15 | 34.7 | 82.0 | ||
20 | 46.3 | 69.0 | ||
25 | 57.9 | 55.2 | ||
30 | 69.5 | 46.0 | ||
40 | 92.6 | 34.5 | ||
50 | 115 | 27.6 | ||
28 | 60 | 139 | 23.0 | |
80 | 185 | 17.3 | ||
100 | 231 | 13.8 | ||
120 | 277 | 11.5 | ||
130 | 350 | 8.7 | ||
200 | 350 | 6.9 | ||
0.55 0.75 | 28 | 3 | 14 | 466.7 |
5 | 23.4 | 280.0 | ||
10 | 46.9 | 140.0 | ||
15 | 70.4 | 93.3 | ||
20 | 93.9 | 70.0 | ||
25 | 117 | 56.0 | ||
30 | 140 | 46.7 | ||
40 | 187 | 35.0 | ||
4 | 50 | 3 | 75 | 478 |
5 | 125 | 287.0 | ||
10 | 250 | 143.5 | ||
15 | 375 | 95.7 | ||
20 | 500 | 71.8 | ||
25 | 626 | 57.4 | ||
30 | 751 | 47.8 | ||
40 | 1001 | 35.9 | ||
50 | 1252 | 28.7 | ||
0.12 0.18 | 18/28 | 300 | 315 | 4.6 |
375 | 350 | 3.7 | ||
450 | 350 | 3.1 | ||
22/32 | 600 | 500 | 2.3 | |
750 | 500 | 1.8 | ||
900 | 500 | 1.5 | ||
1200 | 500 | 1.2 | ||
80 | 375 | 17.5 | ||
100 | 469 | 14.0 | ||
120 | 550 | 11.7 | ||
160 | 550 | 8.8 | ||
200 | 550 | 7.0 | ||
1.1 1.5 | 32 | 3 | 28.1 | 470.0 |
5 | 46.9 | 282.0 | ||
10 | 939 | 141.0 | ||
15 | 140 | 94.0 | ||
20 | 187 | 70.5 | ||
25 | 234 | 56.0 | ||
30 | 287 | 47.0 | ||
40 | 375 | 35.3 | ||
50 | 469 | 28.2 | ||
60 | 563 | 23.5 | ||
80 | 750 | 17.6 | ||
100 | 820 | 14.1 | ||
120 | 820 | 11.8 | ||
160 | 820 | 8.8 | ||
200 | 820 | 7.1 | ||
120 | 1120 | 11.8 | ||
160 | 1320 | 8.8 | ||
200 | 1320 | 7.1 | ||
0.25 0.37 | 40 | 3 | 56.3 | 470.0 |
5 | 93.9 | 282.0 | ||
10 | 187 | 141.0 | ||
3 | 56.3 | 470.0 | ||
5 | 939 | 282.0 | ||
10 | 187 | 141.0 | ||
15 | 281 | 94.0 | ||
20 | 375 | 70.5 | ||
25 | 469 | 56.4 | ||
30 | 563 | 47.0 | ||
40 | 751 | 35.3 | ||
50 | 50 | 820 | 28.2 | |
60 | 1126 | 23.5 | ||
80 | 1320 | 17.6 | ||
100 | 132 | 14.1 | ||
0.25 0.37 | 22/32 28/40 | 300 | 500 | 4.6 |
375 | 500 | 3.7 | ||
450 | 500 | 3.1 | ||
600 | 820 | 2.3 | ||
750 | 820 | 1.8 | ||
900 | 820 | 1.5 | ||
1200 | 820 | 1.2 | ||
0.55 0.75 | 28/40 | 300 | 820 | 4.7 |
375 | 820 | 3.8 | ||
450 | 820 | 3.1 | ||
32/50 | 600 | 1320 | 2.4 | |
750 | 1320 | 1.9 | ||
900 | 1320 | 1.6 | ||
1200 | 1320 | 1.2 |

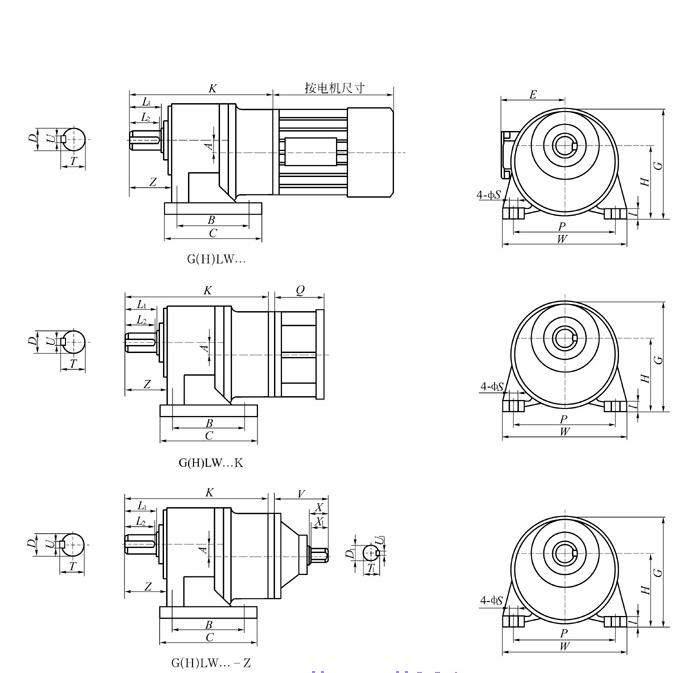

法兰式外形安装尺寸
