    • 产品名称:QJ-T中硬齿面减速机
    • 所属分类:中硬齿面圆柱齿轮减速机
    • 联系人:
    • 手机:153-5159-8088
    详细说明:

    起重机立式减速器部分分为QJLQJT两个系列,主要用于起重机运行机构,也可用于运输、冶金、矿山、化工、轻工等各种机械设备的运行机构中。齿轮、齿轮轴采用中碳合金钢中硬齿面。具有结构紧凑、承载能力较高等优点,是我厂继ZSC型、ZSC(A)型减速器之后推出的又一代新产品。

      QJ-T140、QJ-T170、QJ-T200、QJ-T236、QJ-T280、QJ-T335、QJ-T400、型减速机的外形尺寸及安装尺寸(JB/T8905.4-1999)

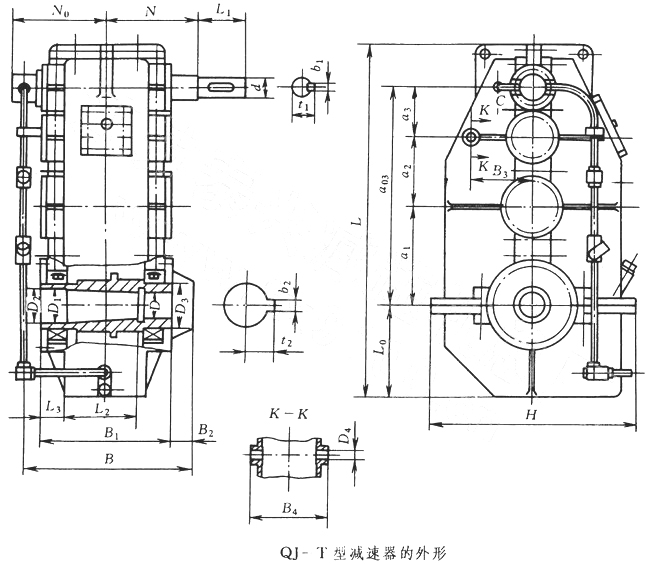

    QJ-T型减速器的外形尺寸及安装尺寸 (mm)
    型号中心距主动轴被动轴
    a1a2a3a03dL1Nb1t1DD1D2D3L2L3b2t2
    QJ-T140140100713112050120622.540505570105501426.2
    QJ-T17017011885373255013582850606580105551631.7
    QJ-T200200140100440286018083155657090105601834.3
    QJ-T23623617011852435802101038708590120155702244
    QJ-T2802802001406204011023512437595100130205752247.8
    QJ-T335335236170741451102551448.590110120160205852856.3
    QJ-T4004002801008805511028516591001201301802551052860.03

    型号外形尺寸安装尺寸重量/kg
    HBB1LL0N0B2B3B4D4
    QJ-T14032425621452613510335851502576
    QJ-T1703762812396181601153510517025108
    QJ-T2004263332747151851335013520025153
    QJ-T2365103873288542201585015524528247
    QJ-T2805804603689952552776519027028364
    QJ-T33568952443611963103076522533032593
    QJ-T40080762452613963653527528039040938

    QJ-T型减速器的中心距、公称传动比和实际传动比与QJ-L型减速器相同。见下表。QJ-T型减速器的中心距 (mm)
    减速器型号QJ-L140QJ-L170QJ-L200QJ-L236QJ-L280QJ-L335QJ-L400
    低速级a1140170200236280335400
    中速级a2100118140170200236280
    高速级a37185100118140170200
    QJ-T型减速器的公称传动比和实际传动比
    规格公称传动比
    16182022.4252831.535.54045505663718090100
    实际传动比
    14015.5717.9219.9623.1324.4628.5932.1535.8340.3045.7249.2655.2063.0968.2578.0090.88103.87
    17015.8217.8619.9522.6425.4427.7831.4535.2239.8743.3449.2156.3964.0472.0681.8289.29101.39
    20015.7818.1020.2222.2324.9827.5731.2135.9940.7544.0349.9555.7363.2268.1277.2886.1097.67
    23615.6818.0720.2122.2825.0927.7731.5334.3741.1343.9550.2153.3664.9271.0081.1185.8398.05
    28016.5118.1920.2622.3923.6927.7231.1834.8339.1544.4150.7653.6961.3671.8482.1190.04102.91
    33515.7017.9820.2022.1825.1127.6431.5835.7640.0045.7048.7658.4362.3572.8283.1993.75100.04
    40015.7818.1020.2222.2324.9827.5731.2136.0040.7544.0349.9555.7363.2268.1277.2886.1097.67
