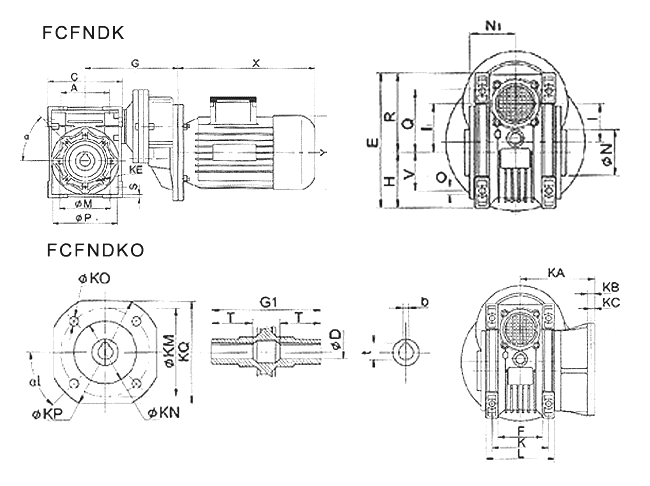

产品型号：FCFN
| size | A | C | D（H7） | E | F | G | G1 | H | I | I1 | L | M | N（h8） | N1 | O | P | Q | R | S | T |
| 63/40 | 70 | 100 | 18(19) | 121.5 | 43 | 123 | 78 | 50 | 40 | 40 | 71 | 75 | 60 | 36.5 | 6.5 | 87 | 55 | 71.5 | 6.5 | 26 |
| 63/50 | 80 | 120 | 25(24) | 144 | 49 | 133 | 92 | 60 | 50 | 40 | 85 | 85 | 70 | 43.5 | 8.5 | 100 | 64 | 84 | 7 | 30 |
| 71/50 | 80 | 120 | 25(24) | 144 | 49 | 143 | 92 | 60 | 50 | 50 | 85 | 85 | 70 | 43.5 | 8.5 | 100 | 64 | 84 | 7 | 30 |
| 63/63 | 100 | 144 | 25(28) | 174 | 67 | 148 | 112 | 72 | 63 | 40 | 103 | 95 | 80 | 53 | 8.5 | 110 | 80 | 102 | 8 | 36 |
| 71/63 | 100 | 144 | 25(28) | 174 | 67 | 158 | 112 | 72 | 63 | 50 | 103 | 95 | 80 | 53 | 8.5 | 110 | 80 | 102 | 8 | 36 |
| 71/75 | 120 | 172 | 28(35) | 205 | 72 | 176 | 120 | 86 | 75 | 50 | 112 | 115 | 95 | 57 | 11 | 140 | 93 | 119 | 10 | 40 |
| 80/75 | 120 | 172 | 28(35) | 205 | 72 | 186 | 120 | 86 | 75 | 63 | 112 | 115 | 95 | 57 | 11 | 140 | 93 | 119 | 10 | 40 |
| 71/90 | 140 | 208 | 35(35) | 238 | 74 | 193 | 140 | 103 | 90 | 50 | 130 | 130 | 110 | 67 | 13 | 160 | 102 | 135 | 11 | 45 |
| 80/90 | 140 | 208 | 35(38) | 238 | 74 | 203 | 140 | 103 | 90 | 63 | 130 | 130 | 110 | 67 | 13 | 160 | 102 | 135 | 11 | 45 |
| 80(90)/110 | 170 | 252.5 | 42 | 295 | - | 233 | 155 | 127.5 | 110 | 63 | 144 | 165 | 130 | 74 | 14 | 200 | 125 | 167.5 | 14 | 50 |
| 80(90)130 | 200 | 292.5 | 45 | 335 | - | 253 | 170 | 147.5 | 130 | 63 | 155 | 215 | 180 | 81 | 16 | 250 | 140 | 187.5 | 15 | 60 |
size | V | K | KA | KB | KC | KE | a | a1 | ||||
FB | FL | F | FB | FL | ||||||||
63/40 | 26 | 35 | 60 | 67 | 76.5 | 7 | 9 | 7 | 7 | M6x8(n.4) | 45o | 45o |
63/50 | 30 | 40 | 70 | 90 | 87.5 | 9 | 10 | 9 | 9 | M8x10(n.4) | 45o | 45o |
71/50 | 30 | 40 | 70 | 90 | 87.5 | 9 | 10 | 9 | 9 | M8x10(n.4) | 45o | 45o |
63/63 | 36 | 50 | 85 | 82 | 99 | 10 | 11 | 10 | 10 | M8x14(n.8) | 45o | 45o |
71/63 | 36 | 50 | 85 | 82 | 99 | 10 | 11 | 10 | 10 | M8x14(n.8) | 45o | 45o |
71/75 | 40 | 60 | 90 | 111 | - | 13 | - | - | - | M8x14(n.8) | 45o | 45o |
80/75 | 40 | 60 | 90 | 111 | - | 13 | - | - | - | M8x14(n.8) | 45o | 45o |
71/90 | 45 | 70 | 100 | 111 | - | 13 | - | - | - | M10x18(n.8) | 45o | 45o |
80/90 | 45 | 70 | 100 | 111 | - | 13 | - | - | - | M10x18(n.8) | 45o | 45o |
80(90)/110 | 50 | 85 | 115 | 131 | - | 15 | - | - | - | M10x18(n.8) | 45o | 45o |
80(90)130 | 60 | 100 | 120 | 140 | - | 15 | - | - | - | M12x21(n.8) | 45o | 45o |
| size | KM | KN(H8) | KO | KP | KQ | b | t | kg | ||||||||||
| F | FB | FL | F | FB | FL | F | FB | FL | F | FB | FL | F | FB | FL | ||||
| 63/40 | 87 | 115 | 87 | 60 | 95 | 60 | 9(n,4) | 9.5(n,4) | 9(n,4) | 110 | 140 | 110 | 95 | - | 95 | 6(6) | 20.8(21.8) | 3.9 |
| 63/50 | 90 | 130 | 90 | 70 | 110 | 70 | 11(n,4) | 9.5(n,4) | 11(n,4) | 125 | 160 | 125 | 110 | - | 110 | 8(8) | 28.3(27.3) | 5.2 |
| 71/50 | 90 | 130 | 90 | 70 | 110 | 70 | 11(n,4) | 9.5(n,4) | 11(n,4) | 125 | 160 | 125 | 110 | - | 110 | 8(8) | 28.3(27.3) | 5.8 |
| 63/63 | 150 | 165 | 150 | 115 | 130 | 115 | 11(n,4) | 11(n,4) | 11(n,4) | 180 | 200 | 180 | 142 | - | 142 | 8(8) | 28.3(31.3) | 7.9 |
| 71/63 | 150 | 165 | 150 | 115 | 130 | 115 | 11(n,4) | 11(n,4) | 11(n,4) | 180 | 200 | 180 | 142 | - | 142 | 8(8) | 28.3(31.3) | 8.5 |
| 71/75 | 165 | - | - | 130 | - | - | 14(n,4) | - | - | 200 | - | - | 170 | - | - | 8(10) | 31.3(38.3) | 11.3 |
| 80/75 | 165 | - | - | 130 | - | - | 14(n,4) | - | - | 200 | - | - | 170 | - | - | 8(10) | 31.3(38.3) | 13.1 |
| 71/90 | 175 | - | - | 152 | - | - | 14(n,4) | - | - | 210 | - | - | 200 | - | - | 10(10) | 38.3(41.3) | 15.3 |
| 80/90 | 175 | - | - | 152 | - | - | 14(n,4) | - | - | 210 | - | - | 200 | - | - | 10(10) | 38.3(41.3) | 17.2 |
| 80(90)/110 | 230 | - | - | 170 | - | - | 14(n,8) | - | - | 280 | - | - | 260 | - | - | 12 | 45.3 | 39 |
| 80(90)/130 | 235 | - | - | 180 | - | - | 16(n,8) | - | - | 320 | - | - | 290 | - | - | 14 | 48.8 | 52. |
